What is Galvanized Iron

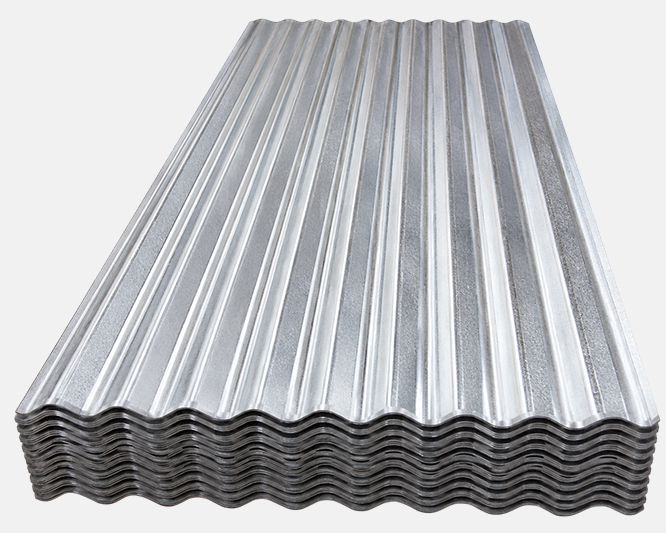

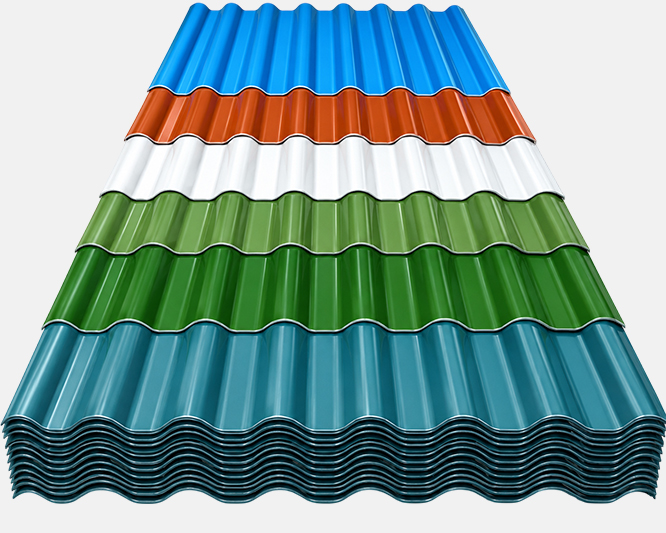

Corrugated galvanised iron or steel , is a building material composed of sheets of hot-dip galvanised mild steelcold-rolled to produce a linear corrugated pattern in them. The corrugations increase the bending strength of the sheet in the direction perpendicular to the corrugations, but not parallel to them. Normally each sheet is manufactured longer in its strong direction.

CGI is lightweight and easily transported. It was and still is widely used especially in rural and military buildings such as sheds and water tanks. Its unique properties were used in the development of countries like Australia from the 1840s, and it is still helping developing countries today.

Corrugated iron is equivalent to tin roof.

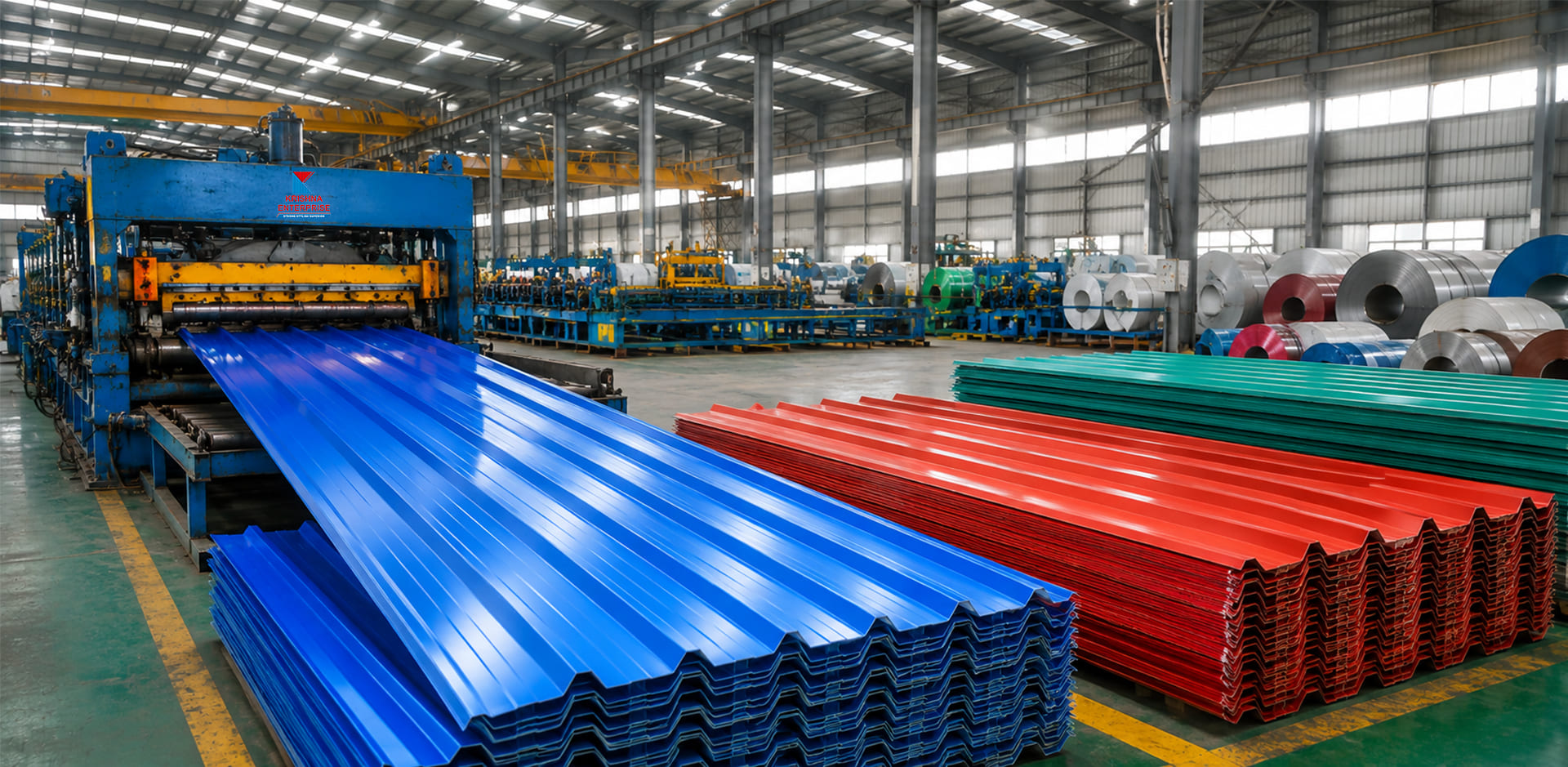

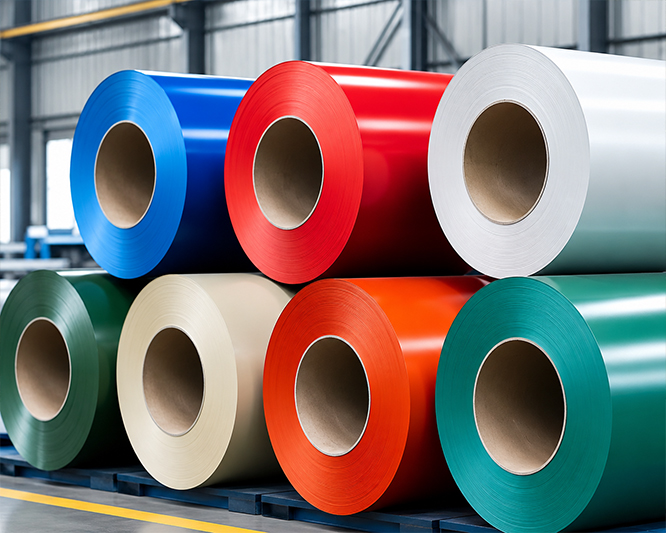

Today the corrugation process is carried out using the process of roll forming. This modern process is highly automated to achieve high productivity and low costs associated with labour. In the corrugation process sheet metal is pulled off huge rolls and through rolling dies that form the corrugation. After the sheet metal passes through the rollers it is automatically sheared off at a desired length. The standard shape of corrugated material is the round wavy style, but can be easily modified to a variety of shapes and sizes by simply changing the dies [4].

Many materials today undergo the corrugation process. The most common materials are ferrous alloys but may also span to stainless steelsCopper and aluminium are also used. Regular ferrous alloys are the most common due to price and availability. Common sizes of corrugated material can range from a very thin 30 gauge (.012 inches = 0.305 mm) to a relatively thick 6 gauge (.1943 inches = 4.94 mm). Thicker or thinner gauges may also be produced.

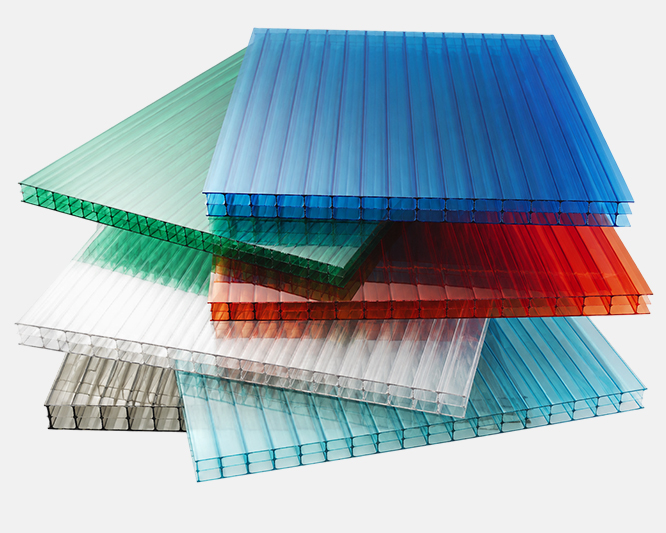

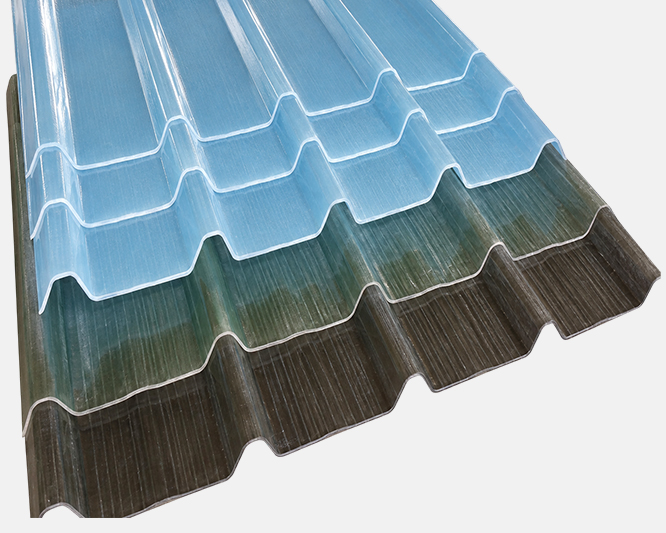

Other materials such as plastic and fibreglass are also given the corrugated look. Many applications are available for these products including using them with metal sheets to allow light to penetrate below.

Although galvanising inhibits the corrosion of steel, rusting is inevitable, especially in marine areas - where the salt water encourages rust - and areas where the local rainfall is acidic. Corroded corrugated steel roofs can last for many years, particularly if the sheetings are protected by a layer of paint.


1. Lowest first cost. Galvanizing is lower in first cost than many other commonly specified protective coatings for steel. (The application cost of labour intensive coatings such as painting has risen far more than the cost of factory operations such as galvanizing.)

2. Less maintenance/Lowest long term cost. Even in cases where the initial cost of galvanizing is higher than alternative coatings, galvanizing is almost invariably cheapest in the long term (because it lasts longer and needs less maintenance).  And, maintenance causes problems and adds to costs when structures are located in remote areas, and when plant shutdown or disruption to production is involved.

3. Long life. The life expectancy of galvanized coatings on typical structural members is far in excess of 50 years in most rural environments, and 20 to 25 years plus, even in severe urban and coastal exposure.

4. Reliability. Galvanizing is carried out to Australian / New Zealand Standard 4680, and standard, minimum coating thicknesses are applied. Coating life and performance are reliable and predictable.

5. Toughest coating. A galvanized coating has a unique metallurgical structure which gives outstanding resistance to mechanical damage in transport, erection and service.

6. Automatic protection for damaged areas. Galvanized coatings corrode preferentially to steel, providing cathodic or sacrificial protection to small areas of steel exposed through damage. Unlike organic coatings, small damaged areas need no touch up.

7. Complete protection. Every part of a galvanized article is protected, even recesses, sharp corners and inaccessible areas. No coating applied to a structure or fabrication after completion can provide the same protection.

8. Ease of inspection. Galvanized coatings are assessed readily by eye, and simple non-destructive thickness testing methods can be used. The galvanizing process is such that if coatings appear sound and continuous, they are sound and continuous.

9. Faster erection time. As galvanized steel members are received they are ready for use. No time is lost on-site in surface preparation, painting and inspection. When assembly of the structure is complete, it is immediately ready for use, or for the next construction stage.

10. A full protective coating can be applied in minutes; The galvanizing process is not dependent on weather conditions


Short History of G.I.Sheet

CGI was invented in the 1820s in Britain by Henry Robinson Palmer, architect and engineer to the London Dock Company. It was originally made (as the name suggests) from wrought iron.

Galvanization is the process of applying a protective zinc coating to steel or iron in order to prevent it from rusting. The term is derived from the name of Italian scientist Luigi Galvani. Galvanized iron (GI) sheets are steel sheets which are basically coated with zinc and include a range of hot dip galvanized and electro-galvanized steel sheets. Zinc weathers at a very slow rate, so the coating generally has a long life. Zinc has a greater electro-negativity than iron and hence provides cathodic (or sacrificial) protection to the steel. This results in the zinc corroding in preference to the steel if the coating is chipped or damaged to expose the base metal. Besides acting as galvanic protector, The other functions of the zinc layer are as follow:

  • To retain the steel intact with its full initial strength.
  • To provide the surface a more pleasing appearance.
  • To increase the life of any suitable organic finishing system applied over it.
  • To protect the steel from corrosive attack in most atmospheres, acting as a continuous and lasting shield between steel and the atmosphere.
